Yardian Pro

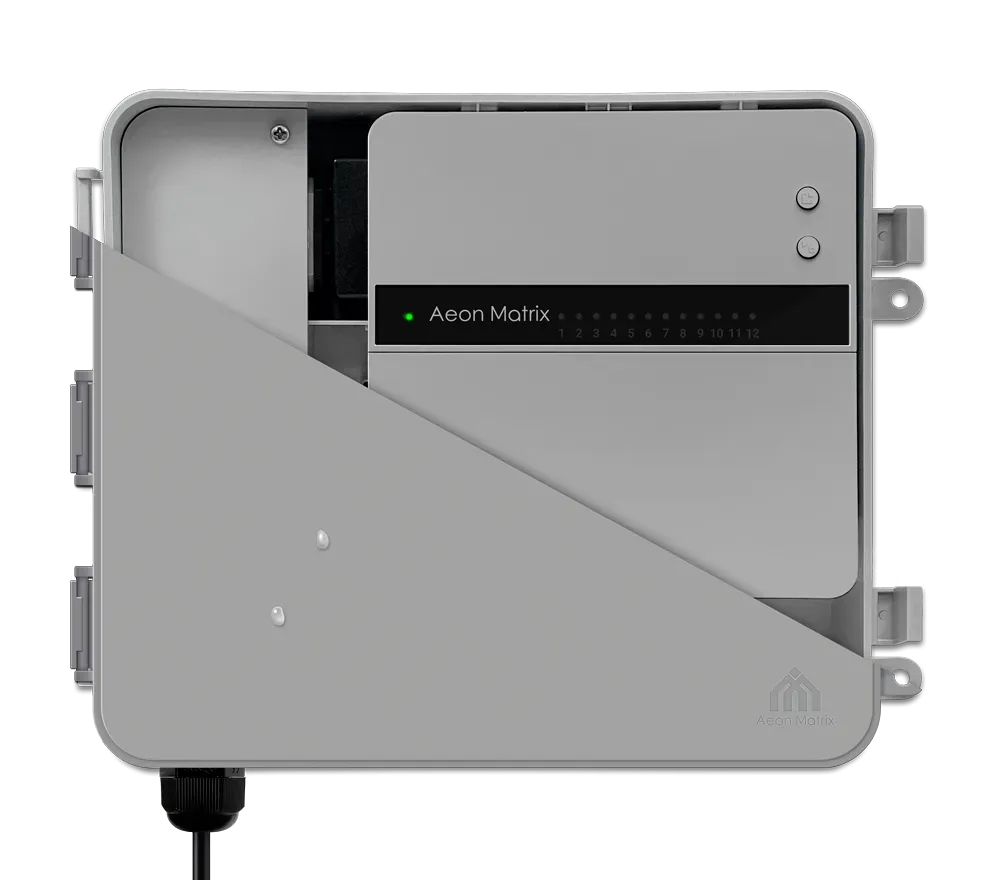

Outdoor Enclosure

Life is busy, so don’t waste time stressing out about your lawn or garden. Instead, let the Yardian take care of all the heavy lifting for you with its robust set of useful capabilities.

Smart Sprinkler Controller

Yardian and Yardian Pro both come in 12-zone and 8-zone models.

Yardian is designed for both indoor and outdoor installation and Yardian Pro is designed for indoor use with optional outdoor enclosure.

Easy and Intuitive Control

You can set up your plant, sprinkler head, soil, etc. for each zone in your property. Each zone can be assigned to either a Smart Program or a Manual Program for watering schedules. The control access of your device can be easily shared to your family members or contractor. Multiple devices can be created and managed under one user account.

Manual Program with Seasonal Adjustment

A Manual Program is designed to follow your preferences for watering schedule. You only need to set it up one time, and Yardian will automatically adjust the watering schedule every month based on your Seasonal Adjustment setting.

Adjustable Smart Program

EPA WaterSense certified weather-based Smart Program calculates your watering schedules automatically based on the property profile, local weather conditions, and optional proprietary Water Restrictions database. Soaking cycles are automatically applied to prevent water run-off. This program is adjustable to better suit your watering needs.

Conditional Program

A Conditional Program allows you to create a watering schedule with a trigger event, such as specific temperatures. It’s a special program that you can use in addition to a Smart Program or Manual Program for your zone(s).

Skip Rules​

You can choose to skip watering schedules created by your Smart Program and/or Manual Program. There are 4 skip rules that you can use based on Chance of Rain, Rain Sensor Skip, Manual Skip, and Freeze Prevention.

Master Valve and 24VAC Output

Yardian: you can assign any spare zone as the master/pump or a 24VAC power supply via the Yardian app.

Yardian Pro: there are dedicated master zone and 24VAC output.

Master Valve By Zone​

This is a powerful feature that activates your master valve or pump relay only for zones in need. With the help of a relay, you can control a wider variety of applications, such as light systems or any devices that require schedules.

Multiple Yardians

Does your property require more than 12 zones? Multiple Yardians work seamlessly with different sets of Smart Program Hours to provide complete coverage for your lawn or garden.

Voice Activation

Yardian may be activated by using Amazon’s Alexa and Google Assistant. Specific voice commands provide customized control of your lawn’s watering requirements, such as watering your property based on specific zones.

Specifications Comparison - Yardian vs. Yardian Pro

Product Design

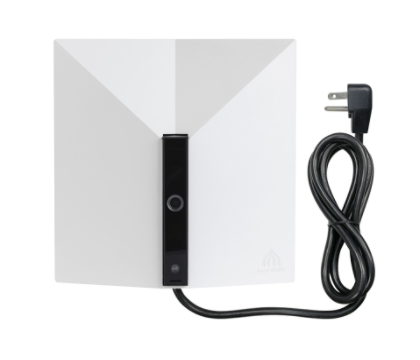

Yardian

  • Multi-functional with built-in HD camera
    • 720p HD
    • 1/4” CMOS sensor
    • 130 degree field of view
    • Night vision
    • Light sensor
  • Weatherproof design for both indoor and outdoor use

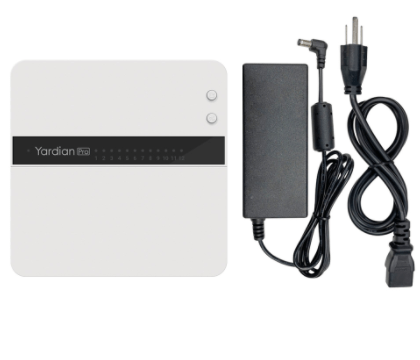

Yardian Pro

  • On-device buttons without a phone or internet access
    • Instant watering control for any zone
    • Can specify watering duration for 1~12 minutes
    • Valve connection detection
    • Overcurrent valve diagnosis
    • System reboot button
  • Indoor design with optional outdoor enclosure

Smart Home Integration

Yardian

  • Apple MFi certified
  • Amazon Alexa compatible
  • Google Assistant compatible
  • IFTTT compatible
  • Future integrations through Over-The-Air (OTA) software updates

Yardian Pro

  • Apple HomeKit certified
  • Amazon Alexa compatible
  • Google Assistant compatible
  • IFTTT compatible
  • Future integrations through Over-The-Air (OTA) software updates

Internet Connection

Yardian

  • Wi-Fi 2.4G, 802.11 b/g/n dongle

Yardian Pro

  • Wi-Fi 2.4G, 802.11 b/g/n module built-In with extended signal coverage
  • RJ45 for Ethernet cable or LTE router

Interfaces

Yardian

  • 8-zone/12-zone terminals with surge and overcurrent/short protection
    • Wire range: 14AWG ~ 22AWG
    • Auto zone detection
  • Programmable master valve/pump
  • Programmable 24VAC output
  • One sensor port
  • USB port
  • Wi-Fi button

Yardian Pro

  • 8-zone/12-zone terminals with surge and overcurrent/short protection
    • Wire range: 14AWG ~ 22AWG
    • Auto zone detection
    • Faulty valve (short circuit) detection
  • Dedicated master valve/pump
  • Dedicated 24VAC output port
  • Two sensor ports
  • RJ45 port and USB port
  • Wi-Fi button
  • Reboot button
  • Select button
  • Run/Stop butto

Power

Yardian

Controller Power

  • Input: 100 ~ 240 VAC, 50Hz/60Hz, 6 ft power cord.
  • Output: 24VAC, Max. 750mA

Yardian Pro

Controller Power

  • Yardian must be connected to the power adapter included
  • Input: 36VDC, 1.66A
  • Output: 24VAC, Max.1A

External Power Adapter

  • Input: 100 – 240VAC, 50 – 60Hz
  • Output: 36VDC, 1.66A
  • Level VI power efficiency

Dimensions and Weight

Yardian

  • 7.875” L x 7.875” H x 2.75” W
  • 2.2 Lbs

Yardian Pro

  • 6” L x 6” W x 1.38” H
  • 1lbs

Operating Temperature

Yardian

  • -22°F to 122°F (-30°C to 50°C)

Yardian Pro

  • -22°F to 140°F (-30°C to 60°C)

APP

  • iOS 9.0+ and AndroidTM 5.0 Lollipop®+
  • Web control available: https://webapp.yardian.com

Rain Sensor Support

  • Programmable to Normally Closed (NC) or Normally Open (NO).

Flow Sensor Support

  • Flow Sensor Support (pulse output)

Warranty

  • 2-year limited warranty
