Introducing the Yardian Data Hub – your ultimate sensor hub solution for easy sensor data management. Built for simplicity, this hub enables seamless data gathering from multiple sources via RS-485 and USB interfaces. Equipped with both 12VDC and 24VDC outputs, it provides flexible, uninterrupted power for connected sensors. For on-site data storage, an 8GB USB drive is included.

The Yardian Data Hub can be integrated with your system for various applications. It also integrates seamlessly with the Yardian Max multifunctional smart controller, enabling you to create tailored control solutions for any environment. Together, the Yardian Max and Data Hub deliver a complete, easily deployable sensing and control solution, eliminating the need for complex and costly PLC cabinets. Streamline your setup and elevate your control capabilities with the Yardian Data Hub.

Data Hub Features

Simplifies sensor data management for hassle-free operation. Can be installed using screws or DIN rail TS-35/7.5mm

Offers seamless connectivity with RS-485 and USB interfaces

Includes an 8GB USB drive for secure on-premise storage of collected data.

Built-in isolation and surge protection protect the controller from being affected by lightning strikes and surges.

Weatherproof outdoor enclosure included

24VDC Power supply included with both 24VDC and 12 VDC outputs for sensors.

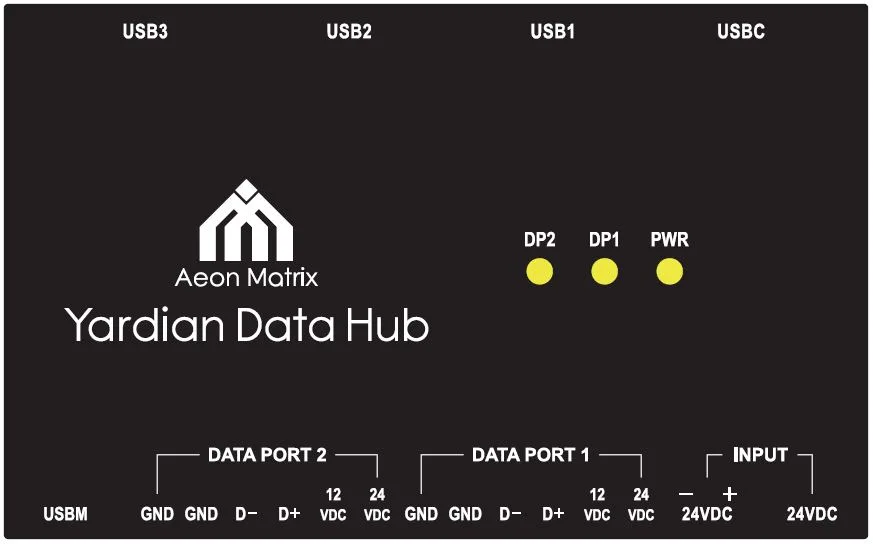

Yardian Data Hub Interfaces

  • USB1 ~ USB3: USB 2.0 Type-A ports for sensors and the 8GB USB drive
  • USBC: USB 2.0 Type-C port for connecting Yardian accessories
  • USBM: USB 2.0 Type-B port for connecting the Yardian controller
  • DATA PORT 1 and DATA PORT 2: RS485 ports for connecting sensors
    • 2x GND ports
    • D- (A)
    • D+ (B)
    • 12VDC
    • 24VDC
  • INPUT: 24VDC power input ports (suggest power supply > 48W)
    • Terminal block or
    • DC jack
  • PWR: LED status indicates 24VDC power supply availability.
  • DP1: LED status indicates DATA PORT 1 data transmission
  • DP2: LED status indicates DATA PORT 2 data transmission

RS-485 Sensors

Light

Temperature

Moisture

Rainfall

Soil

Air

What Is Included

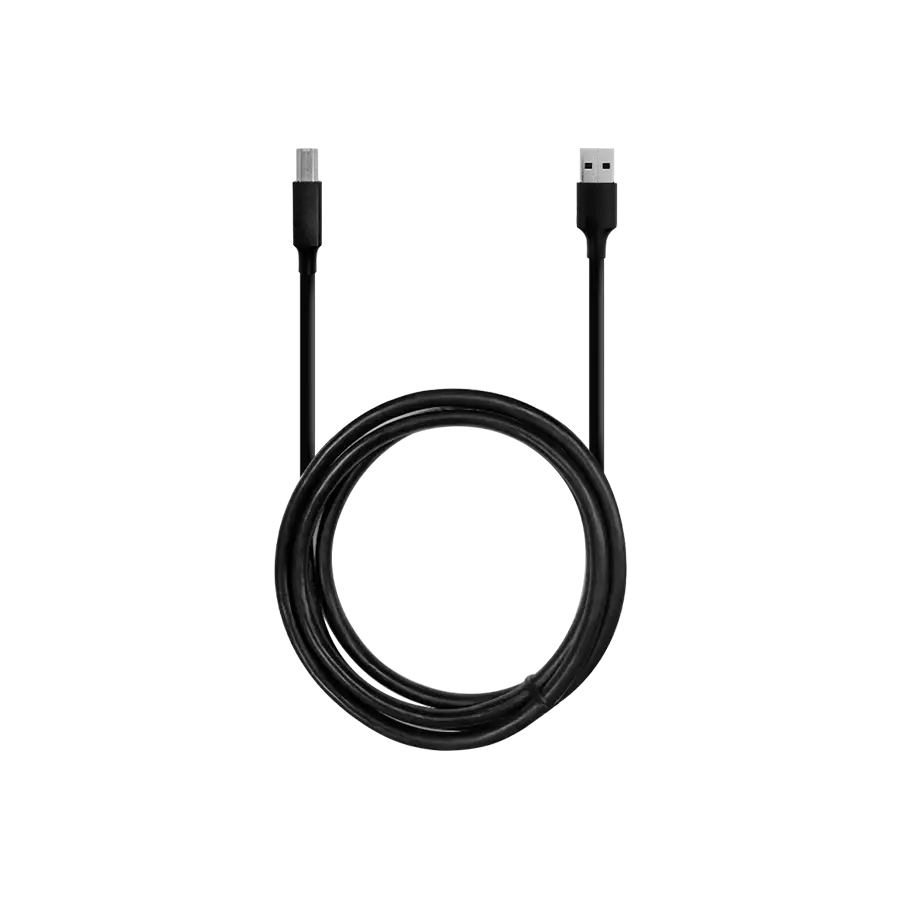

USB Type-A to Type-B Cable

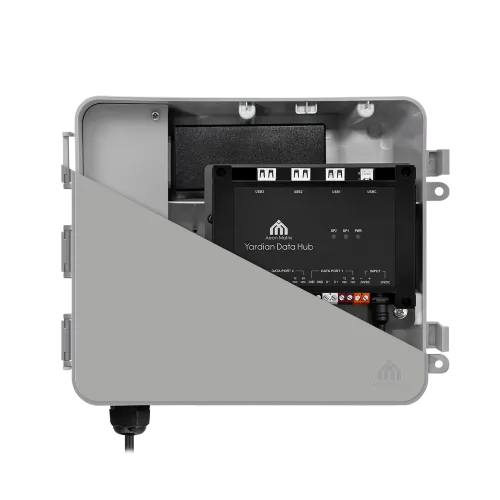

Yardian Data Hub (Optional 24VDC Power Supply and Outdoor Enclosure)

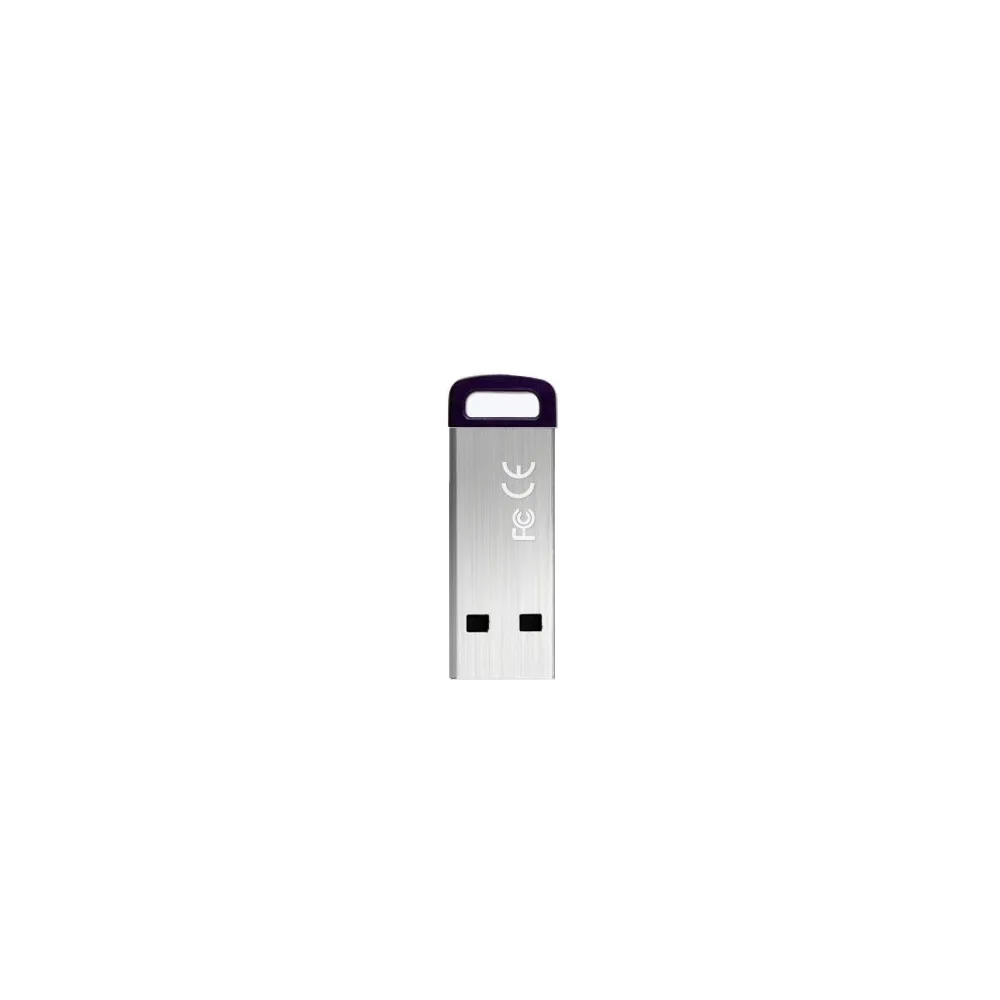

8GB USB Drive
Yardian Data Hub Technical Specs

Interfaces

  • 3x USB 2.0 Type-A ports
  • 2x RS485 ports, each has
    • 2x GND
    • D- (A)
    • D+ (B)
    • 12VDC (output)
    • 24VDC (output)
  • 1x USB 2.0 Type-C port (USBC) for connecting Yardian accessories
  • 1x USB 2.0 Type-B port (USBM) for connecting the Yardian controller
  • 24VDC power input ports
    • Terminal block
    • DC jack

Dimensions and Weight

  • 5.7” L x 3.7” W x 1.57” H  (14.5cm x 9.4cm x 4cm)
  • 0.44lbs (0.2Kg)

Data Hub Power

  • Input: 24VDC/2A
  • Output: 24VDC/1A, 12VDC/1A
  • USB 5V/1A

Operating Temperature

  • -22°F to 140°F (-30°C to 60°C)

Warranty

  • 2-year limited warranty

Design
